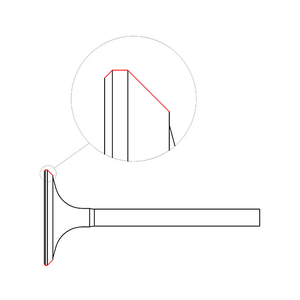

CNC Head Turning Machine is a machine used for simultaneously turning the seat face, head diameter, and chamfer.
| Machine bed | Bed body and bed seat form | 45 ° inclined bed body integral bed seat | |
| Center height | mm | 350 | |
| Distance between spindle bearings | mm | 320 | |
| Scope of work | Swing over bed | mm | φ420 |
| Rail span X/Z | mm | X:240/Z:320 | |
| Max Swing diameter | mm | Head：φ350，Shaft：φ280 | |
| Max processing length | mm | 200 | |
| Feed | Max stroke in X-direction (lateral) | mm | 230 |
| Z-axis (longitudinal) max sroke | mm | 230 | |
| X-direction (lateral) fastest speed | m/min | 12 | |
| Z-direction (longitudinal) fastest speed | m/min | 12 | |
| X/Z linear guide rail width | mm | X:35 /Z：35 | |
| X/Z direction ball screw pair | mm | X:3208 /Z：4008 | |
| Spindle | Main spindle head specifications | A2-6 | |
| Taper of spindle bore | Mohs 6 # taper | ||
| spindle bore diameter | mm | φ57 | |
| Spindle runout | mm | Proximal end：0.005；Distal end：0.015 | |
| Max spindle speed (full speed range variable frequency) | r/min | 2500 |
